Description
Hard Mn alloy steel Q345B in 80% chassis.
2000kg Max loading capacity with 5.5m max lifting
height
Yunnei 76KW Engine
Automatic transmission control
Four-wheel drive, Oscillating gear axles
Four-wheel hydraulic spread-shoe brake
Camel battery with high AH
16/70/24tires
Warm Cabin with luxury seat

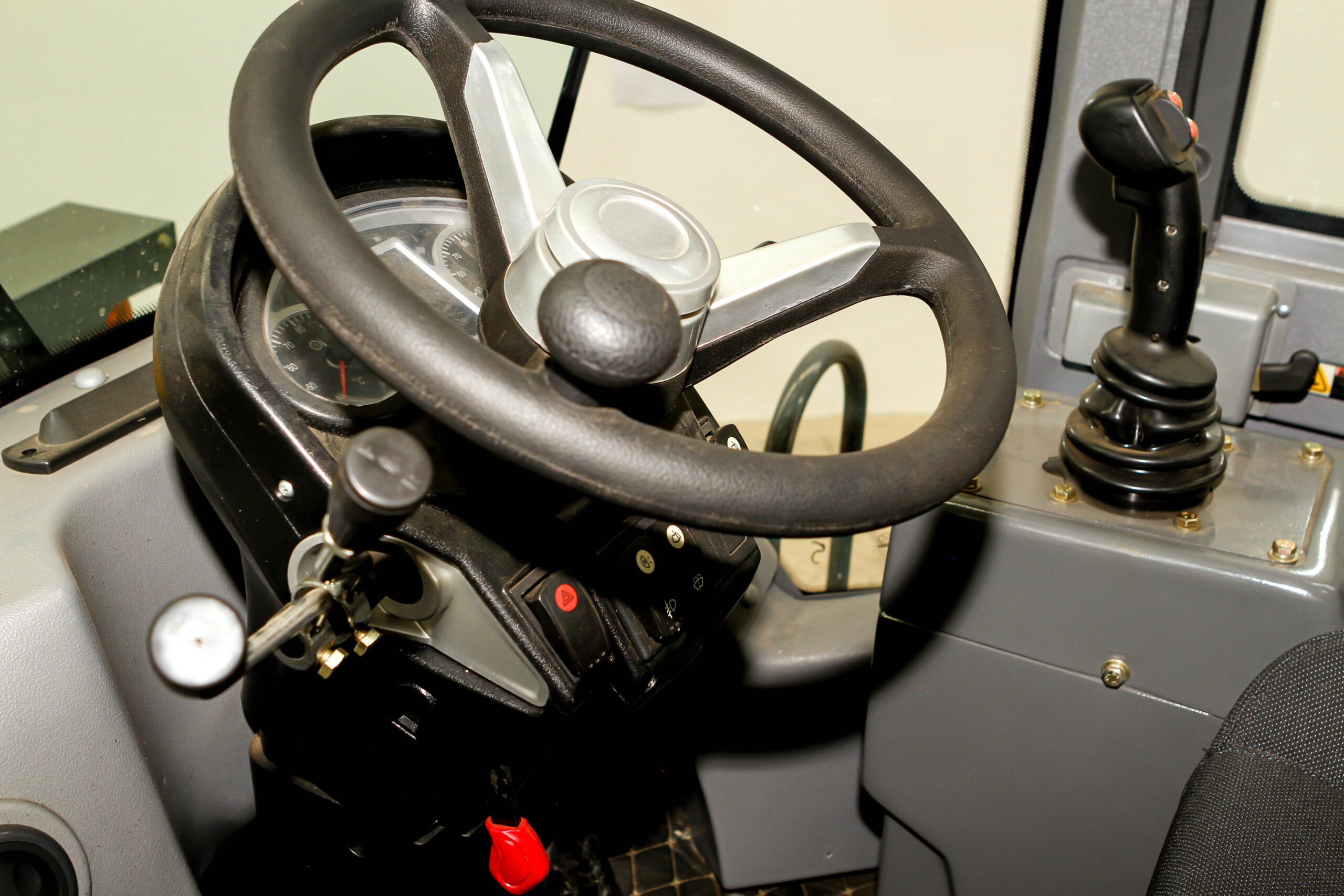

Adjustable steering wheel
Heater
SPECS:

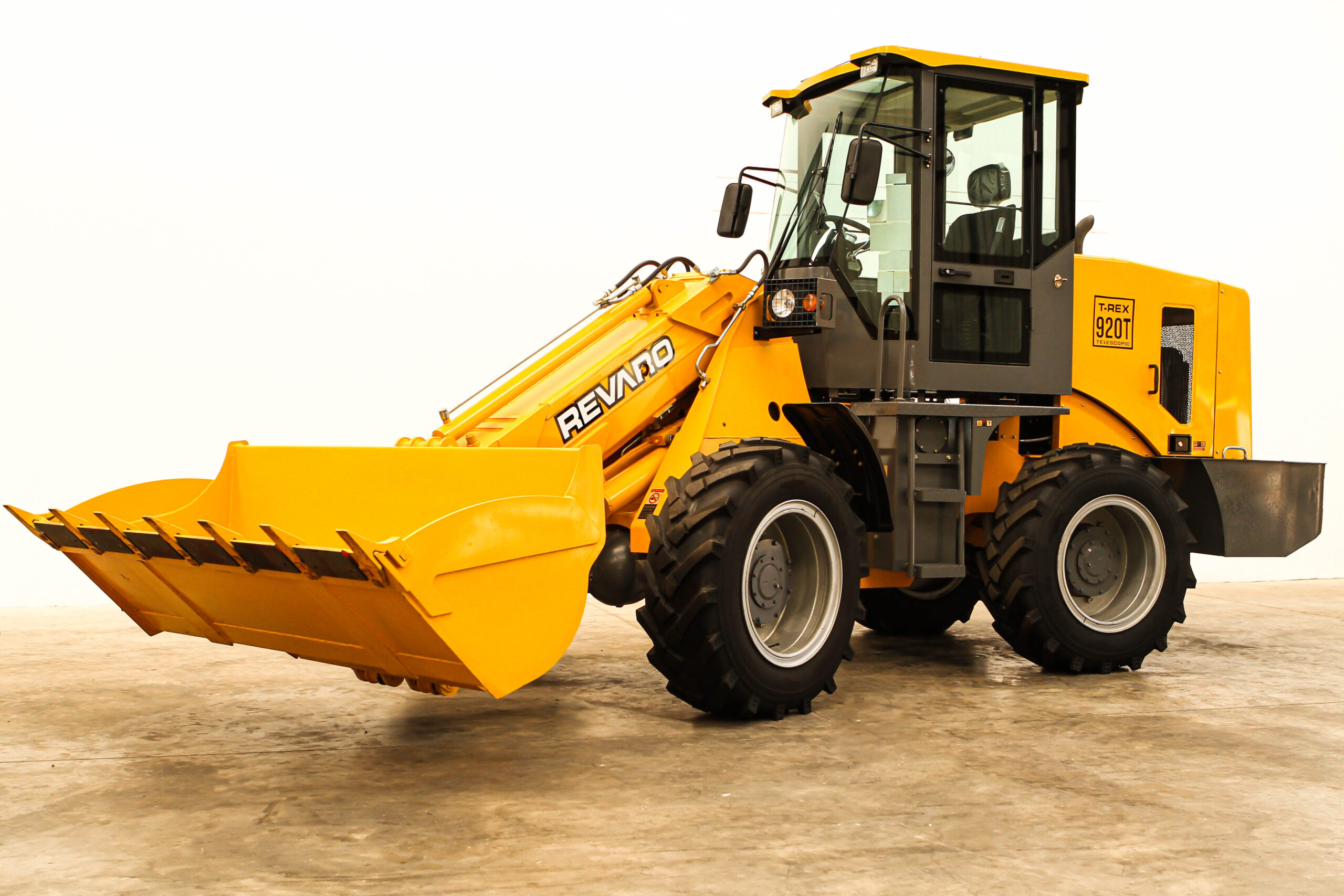

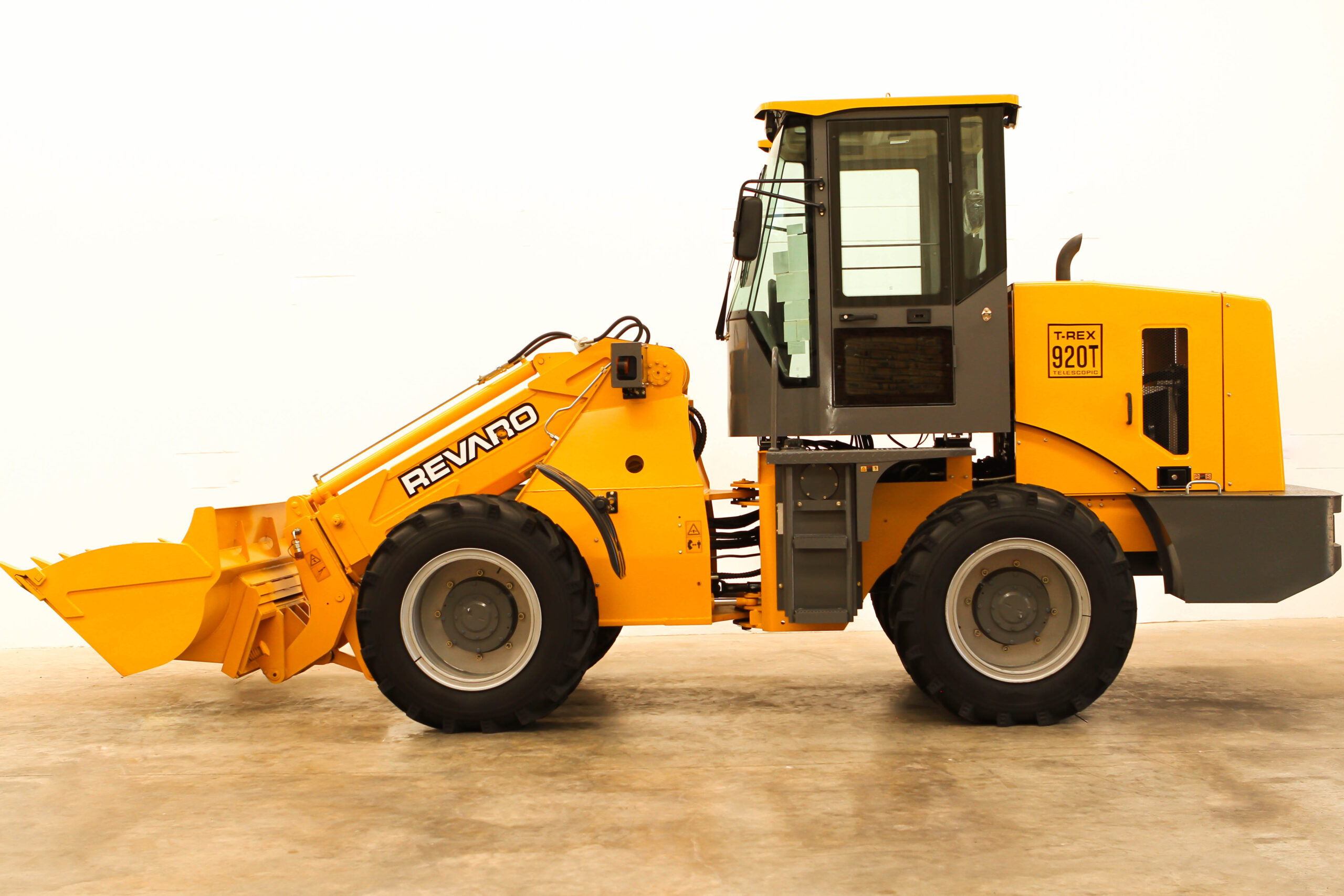

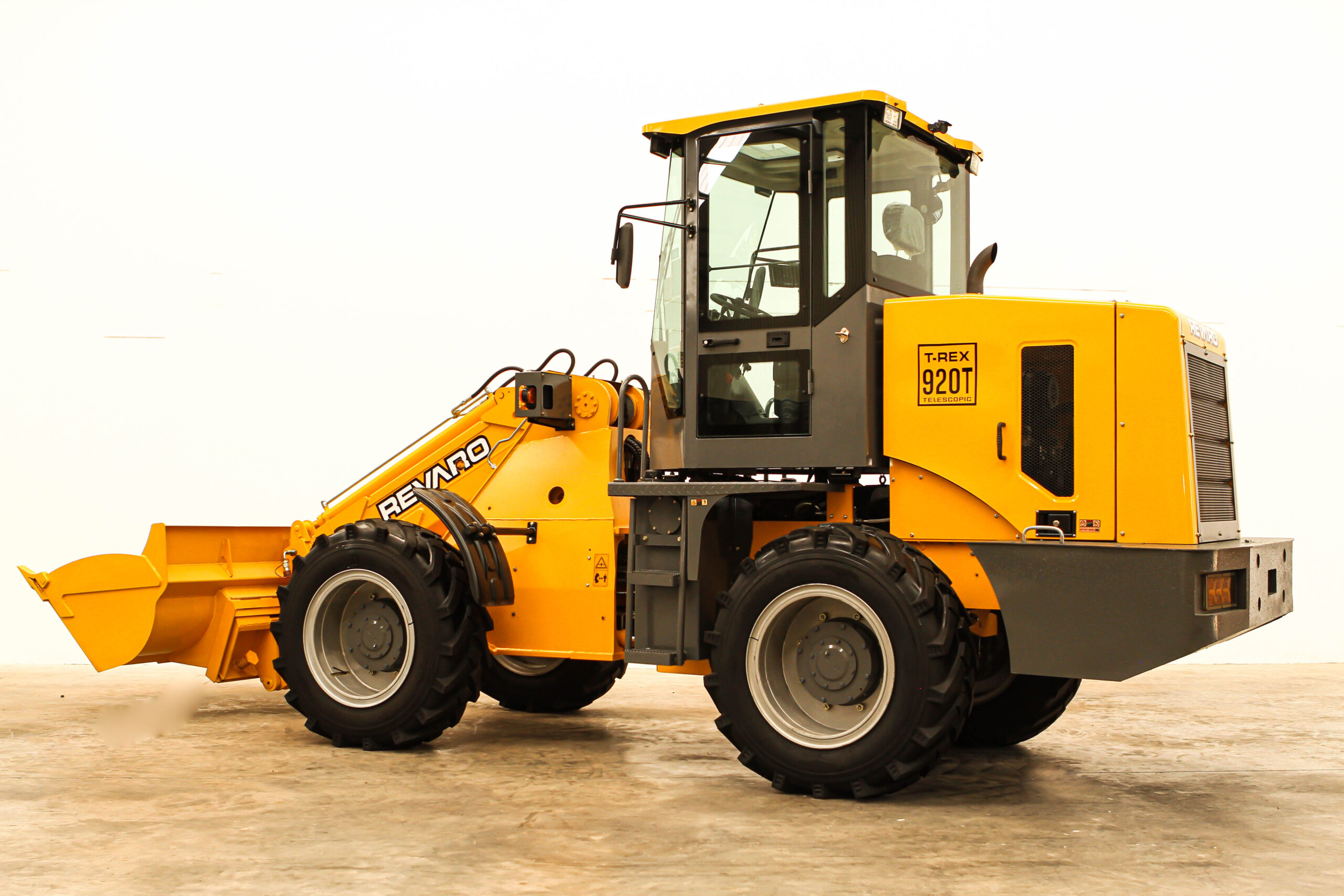

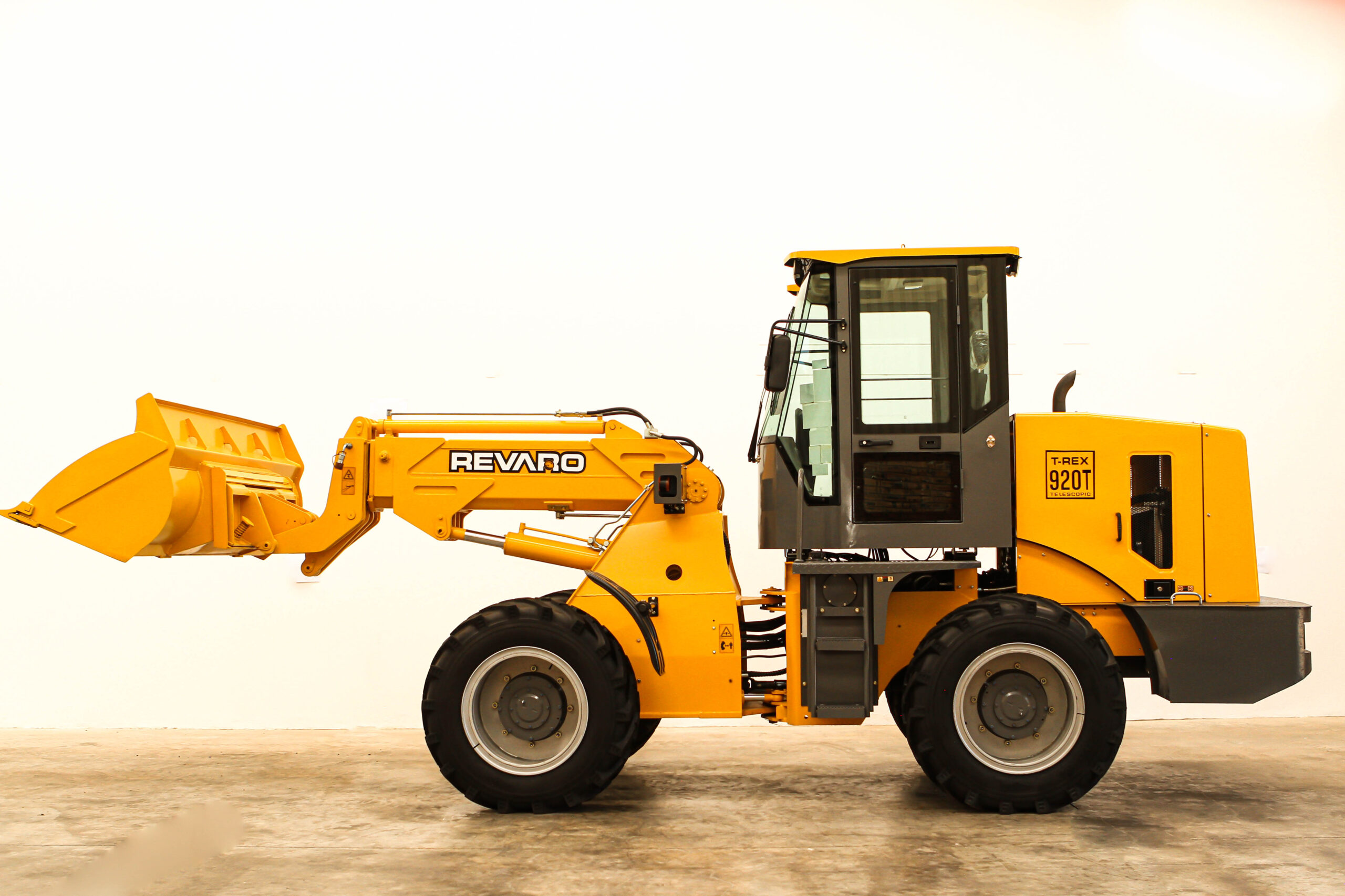

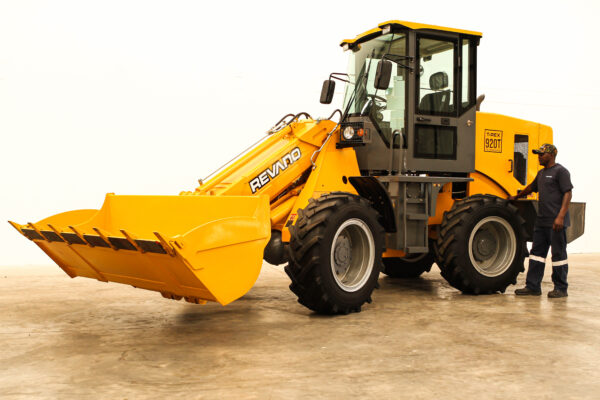

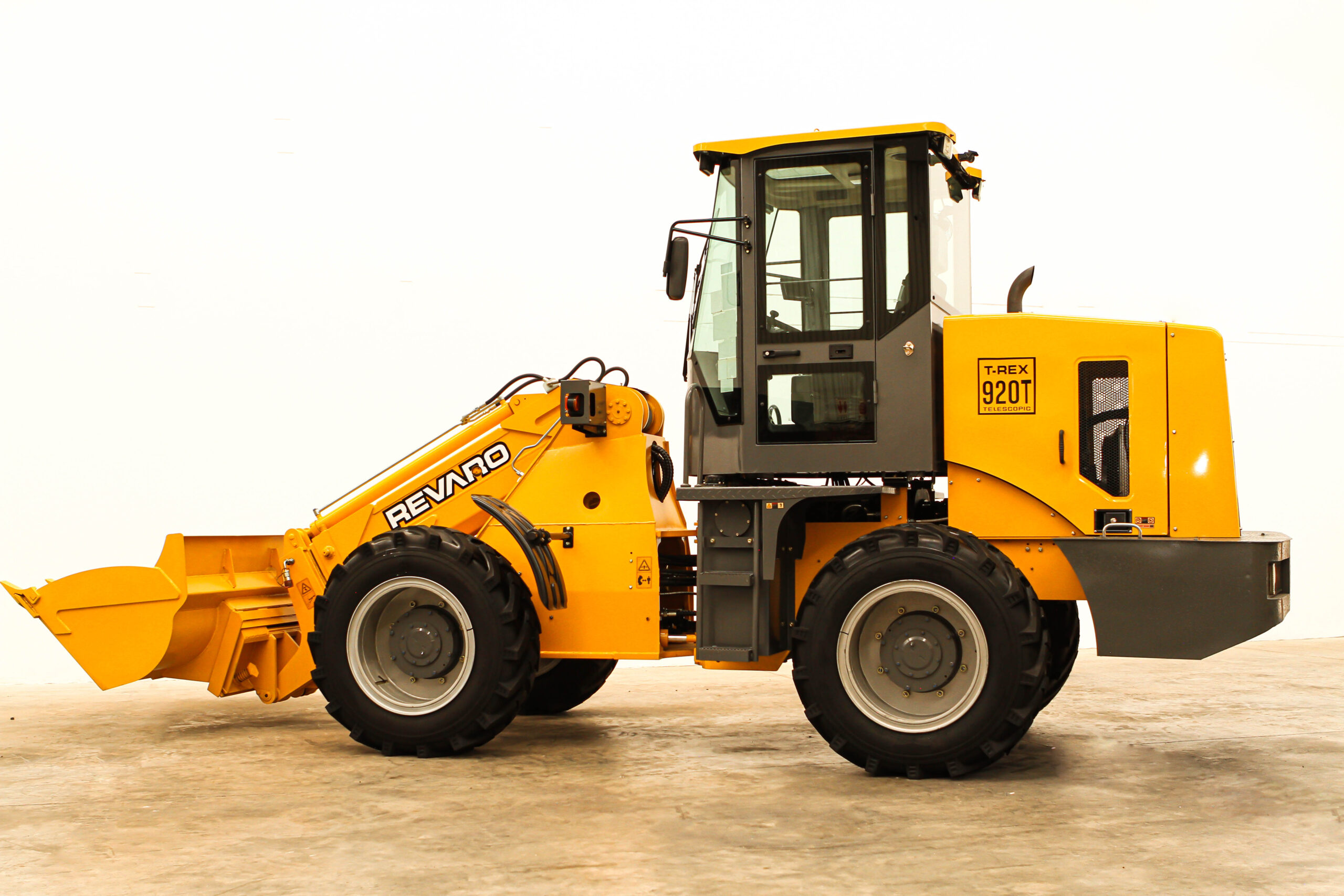

Model 2-ton telescopic wheeled loader

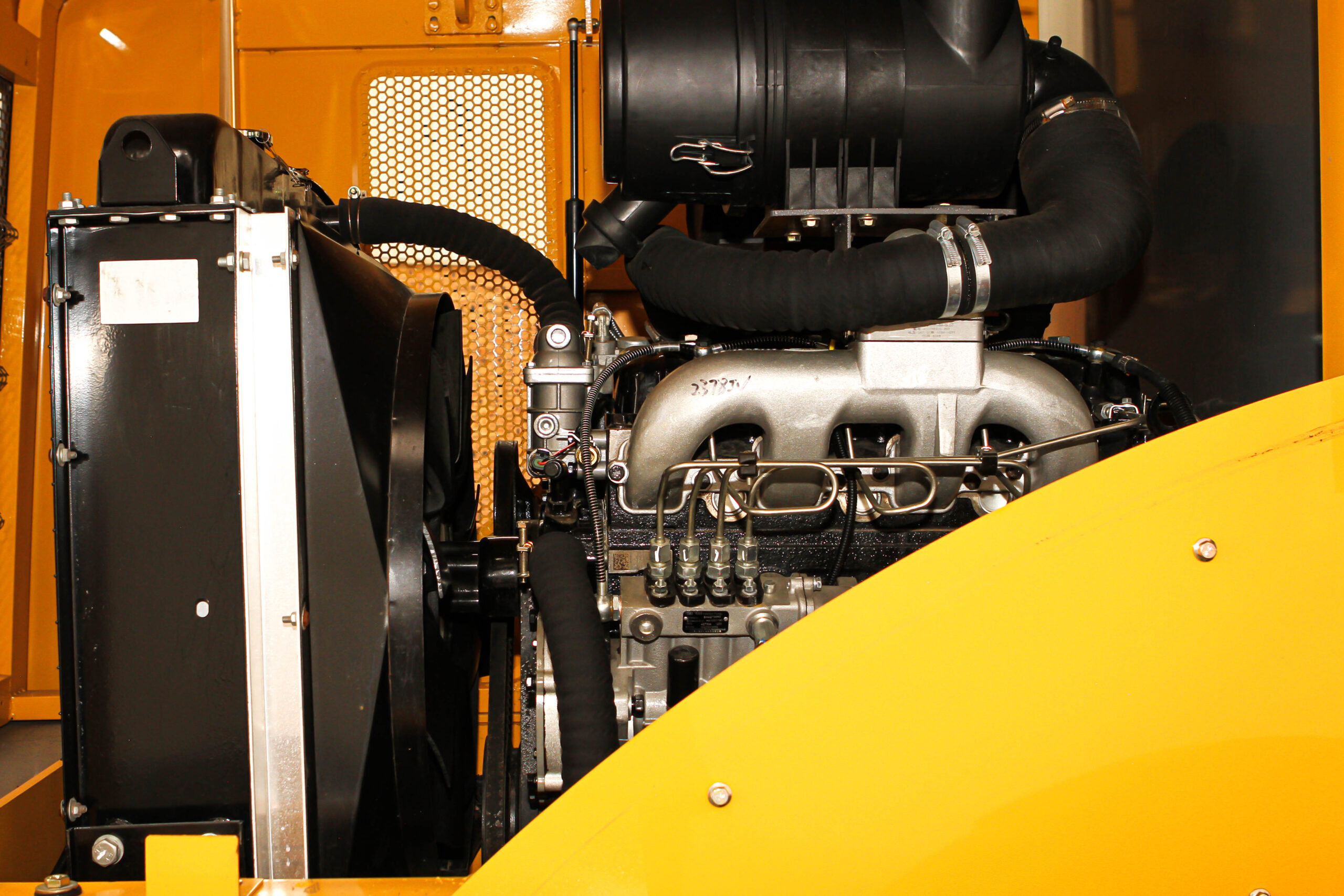

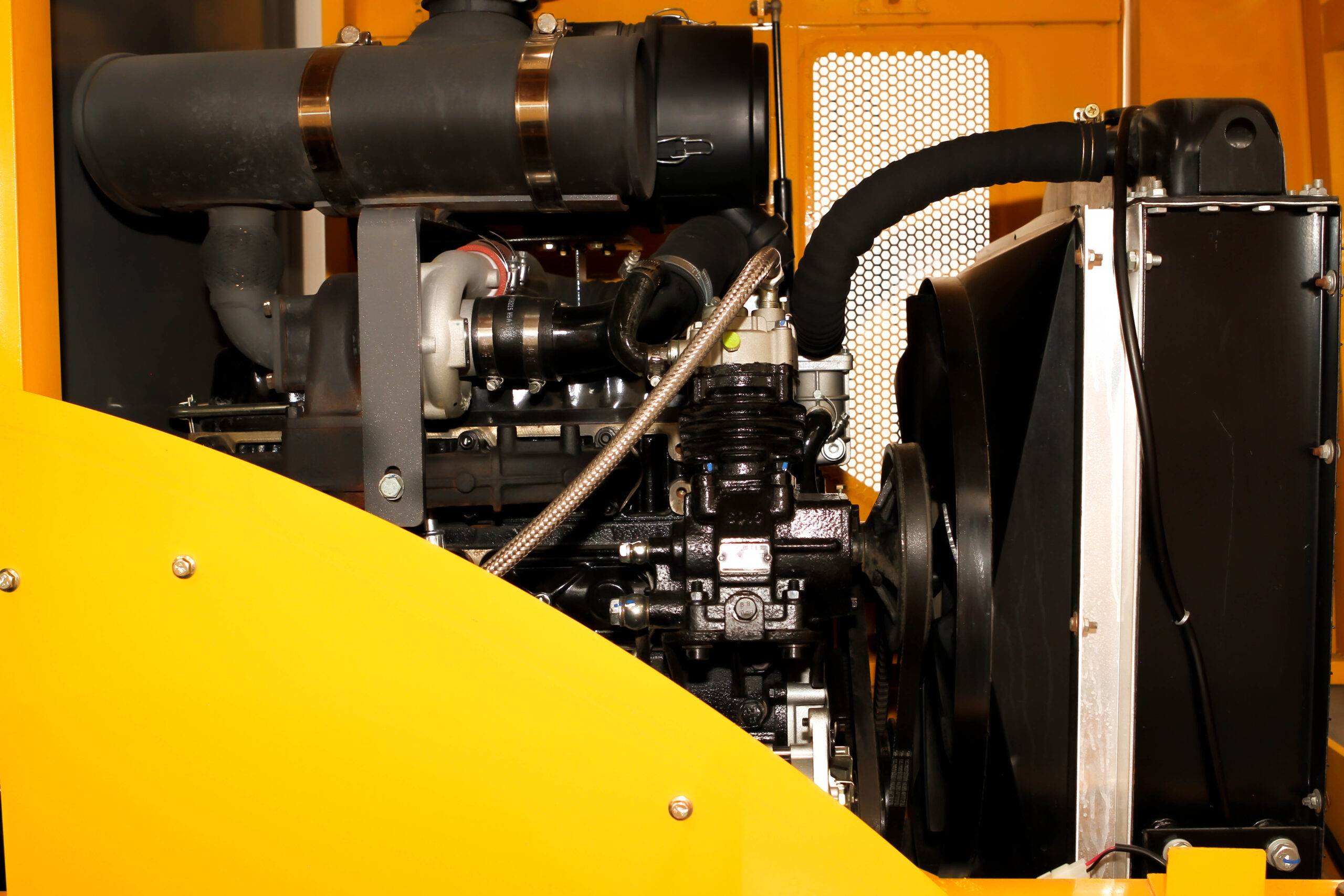

Engine Model Yunnei YN38GBZ
Engine Rated Output 76kW
Engine Type In line, vertical, water cooled, four-stroke
Engine Number of cylinders 4
Engine Method of starting Electric
Lifting Capacity 2000kg

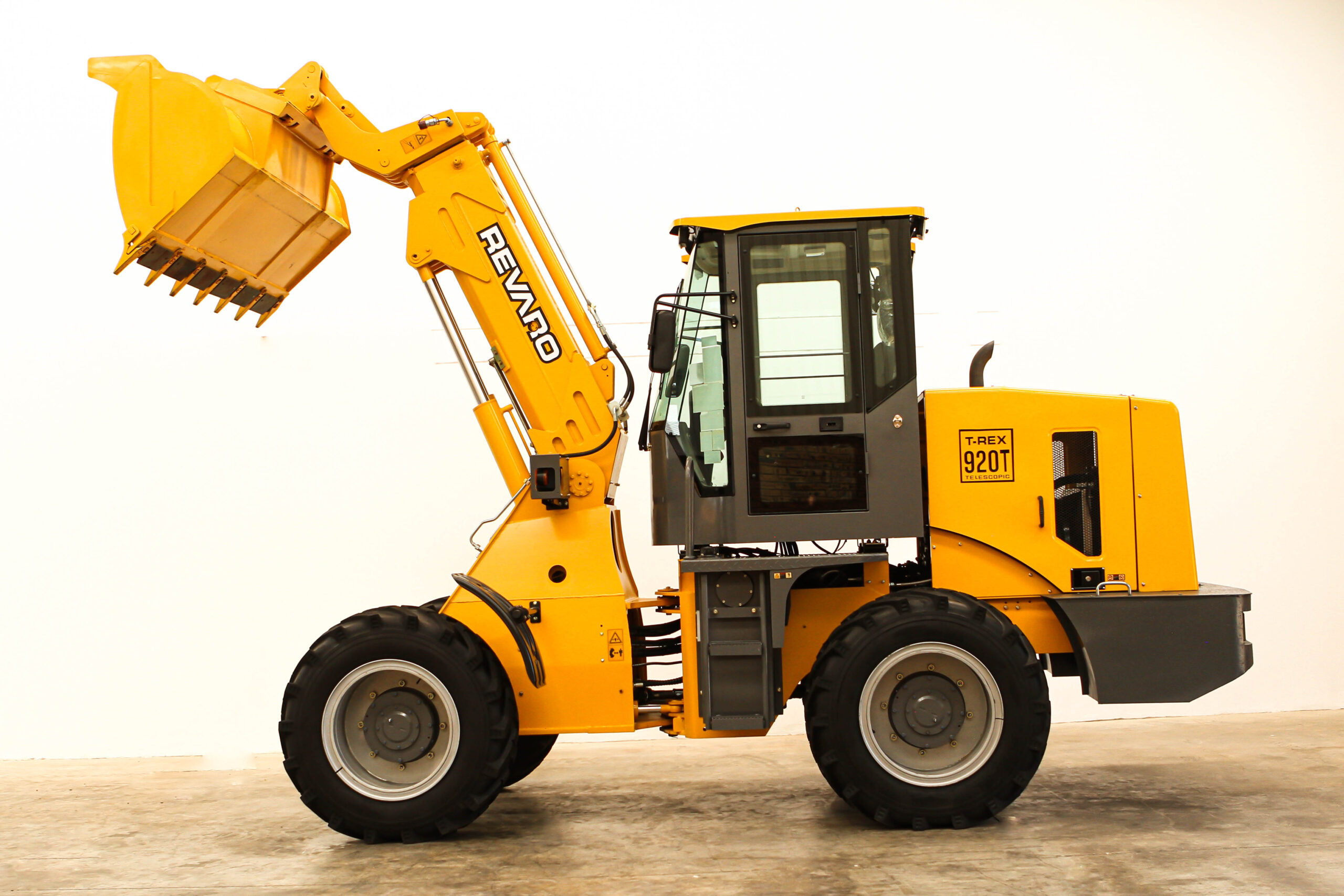

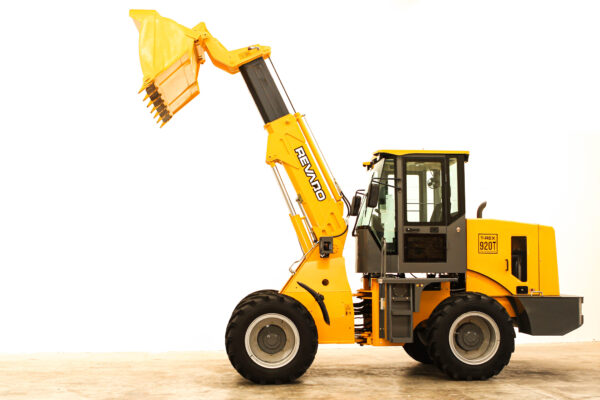

Max lift / dumping height 5500 / 4500mm
Lift Time 4.7s
Operating Weight 6500kg
Axle-base 2325mm
Tyre 16/70-24
Maximum Breakout Force 58kW
Maximum Speed 20km/h
Transmission 4×4
Maximum Gradeability 30
Torque Converter Model YJ280B
Turning Radius 4720mm
Bucket Capacity 1m3
Overall Dimensions 7200 x 2150 x 3000mm
